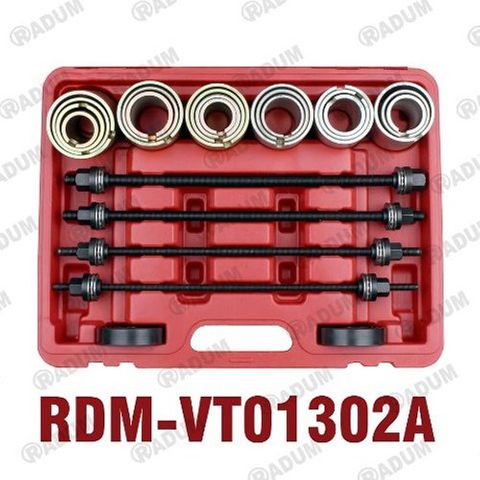

Press & Pull Sleeve 26pc Kit
Description
26pc Press & Pull Sleeve Kit.
Ideal professional universal tool kit for commercial or home hobbyist use.
Designed for extracting and installing of all types bushes, bearings or seals.
Fully Universal application. Suitable for domestic or import vehicle: passenger cars or light trucks.
Remove bushes, bearing or seals without the need of a press. Tool kit items can also be used with a workshop press if need be.
Reduce the possibility of damaging the bearings/suspension housings.
Unique design with U-Plot on each sleeve for operator to easy visual inspect removal/installation.
Hardened and tempered for maximum durability.
Moulded case for easy transportation.
Contains:
20 x Press Sleeves.
Inside diameter range: 34 - 72mm.
Outside diameter range: 44 - 82mm.
2 x step plates.
4 x pulling spindles with thrust bearings
Specifications:
Sleeve Wall Thickness: 5mm
Sleeve Height: 94mm
Sleeve End Caps: 83 x 20mm
Force Screw Length: 450MM
Force Screw Threads: 10 x 1.5mm,
12 x 1.5mm,
14 x 1.5mm,
16 x 1.5mm
External Sleeve Diameter: 44mm,
46mm,
48mm,
50mm,
52mm,
54mm,
56mm,
58mm,
60mm,
62mm,
64mm,
66mm,
68mm,
70mm,
72mm,
74mm,
76mm,
78mm,
80mm,
82mm
WEIGHT: 19kgs
SIZE: 55 X 32 X 15 cm
PICTURED Items may vary...
