Injector Puller Set Fiat/Opel/Ford/Suzuk
Description
Injector Puller Set Fiat/Opel/Ford/Suzuki.
Brand new and good quality Forged Steel construction.
Hardened and Tempered For Maximum Durability.
Ideal kit for commercial or home hobbyist use.
Ideal solution for removal of stubborn/seized or tight diesel injectors.
Enables the controlled extraction of very tight-fitting or seized injector nozzles.
Specially Designed with support bridge on the cylinder to exert high pressure forces directly to the diesel injector.
Disassembly of the cylinder head is not necessary
Allows for easier service and also reduces the risk of damage or personal injury.
Application for a wide range of various models of vehicle makes Fiat, GM/Opel, Suzuki, Iveco and Ford etc.
Supplied in plastic storage case, more convenient to carry and store.
Suitable for e.g. following cars / engines:
- Fiat 500, Punto, Grande Punto, Panda, Idea,
Doblo, Stilo, Bravo, Croma, Ducato
Multijet 1.3 16V - 1.6 16V - 1.9 16V - 2.0 16V - 2.3 - 3.0
- Lancia Ypsilon, Musa, Delta
Multijet 1.3 16V - 1.6 16V - 1.9 16V - 2.0 16V
- Alfa Romeo MiTO, 147, 159
1.3 16V - 1.6 16V - 1.9 16V - 2.0 16V
- Holden/GM/Opel Corsa (C – D), Agila (B), Meriva, Astra (H), Astra GTC,
Tigra (B), Combo Tour, Vectra (C),Insignia, Zafira (B)
1.3 CDTI - 1.9 CDTI - 2.0 CDTI engines
- Suzuki Ignis, Splash, Swift, Wagon R+, Sx4, Grand Vitara
1.3 DDiS 16V - 1.9 DDiS 16V
- Ford Ford Ka ‘09 1.3 Duratorq
- Iveco Daily 3.0
- PSA Boxer, Jumper 3.0

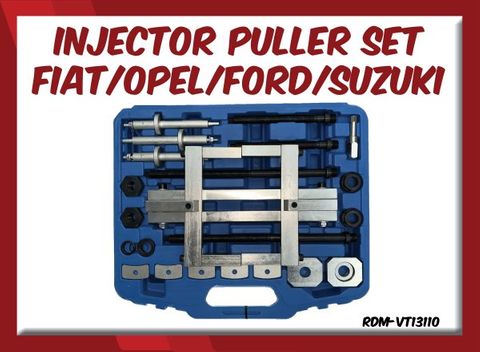

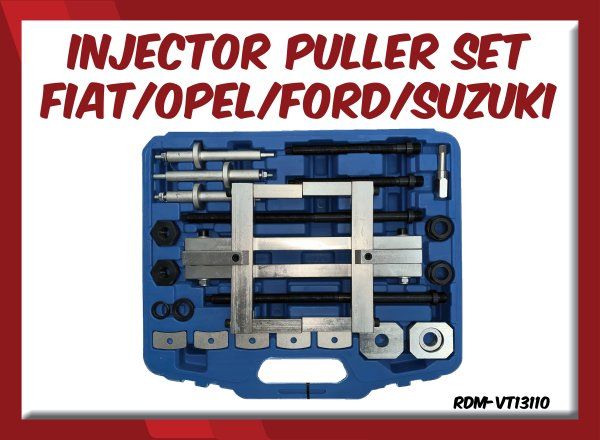

Contains:
1pc Cylinder Head adjustable mounting Bridge 350mm x 215mm x 170mm.
3pc Support Legs with mounting nut 13mm 6 Point, 16mm Diameter stepped down to 8mm pin, with M8x1.25 thread other end,180mmL
5pc Support Leg Attachment plates (slight curved), 50mm x 27mm x 6mm with 9mm centre hole.
1pc Press Support Block 64mm x 53mm x 20mm with 19mm centre hole.
1pc Press Support Block with Internal Thrust Bearing, 64mm x 53mm x 20mm with 19mm centre hole.
2pc Nut, M16 x 1.5, 35mm Hex 6 Point with 19mm step-down spacer, 28mmL.
2pc Nut, M27 x 1.0 external thread (injector nozzle), 30mm Hex 6 Point with 19 mm centre hole, 23mmL.
2pc Large Washer 32mmOD, 20mmID, 6mmThick.
4pc Small Washer 25mmOD, 19mmID, 2mmThick
1pc Key Nut Shaft 19mm Hex 6 Point, 10mm Hex 6 Point other end, 76mmL
2pc Pull Spindle M16 x 1.5 - M17 x 1.0 internal thread (injector nozzle), 10mm Hex 6 Point, 200mmL.
2pc Pull Spindle M16 x 1.5 - M17 x 1.0 internal thread (injector nozzle), 10mm Hex 6 Point, 360mmL.
WEIGHT: 14.80Kgs
SIZE: 47cm x 41.5cm x 11cm
PICTURED Items may vary...
Note: Sizes are approx only, slight variations may occur.
