Power Supply 12VDC 2.5A Cabinet

Stock Code:
PDX-TPS12-2.5DCB
Price:
$0.00 excl GST

Description

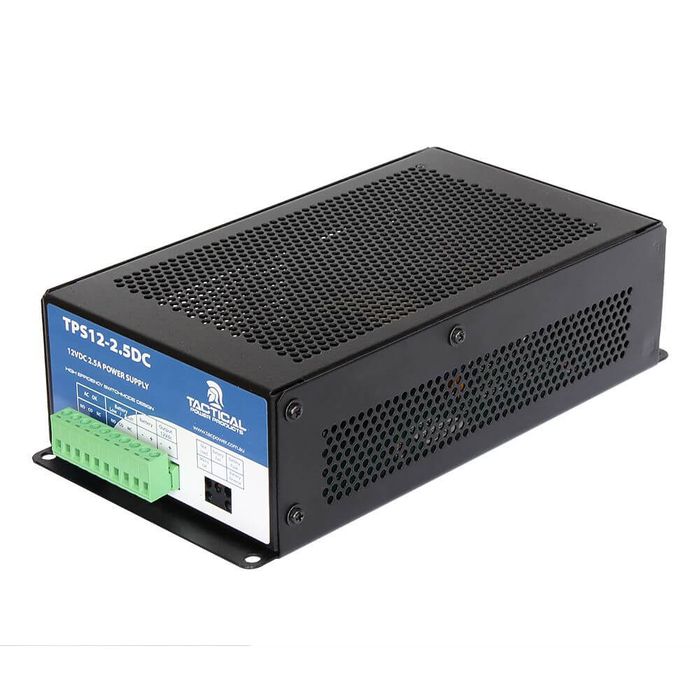

The Tactical TP-TPS12-2.5DC power supply provides a switch mode regulated 12.4Vdc at up to 2.5A via its primary output channel (to power loads such as voltage sensitive CCTV cameras). It includes a separate 13.8Vdc, 700mA channel to keep your standby battery charged - making the TP-TPS12-2.5DC a 3.2A power supply.

In the event of a 240V mains failure, the TP-TPS12-2.5DC automatically re-regulates the 13.8V standby battery voltage to 12.4Vdc ensuring that sensitive equipment is not subjected to higher, potentially damaging voltages.

Genuine 2.5A continuous output
Dual channel - 12Vdc output (2.5A) / 13.8Vdc battery charger (700mA)
Total output current of 3.2A (2.5A + 700mA)
AC fail and low battery relay outputs
Short circuit protection

Input Voltage: 240Vac / 50Hz
Operating Temperature: 0-50degC
Dimensions: 225L x 120W x 60H mm
Weight: 1.2kg
