152Mtr Reel Box RG6 Quad Siames (500 Ft)

Stock Code:
PVBCX2103-152DUAL
Price:
$0.40 excl GST

Description

Features Coax Type: Dual Quad Shield RG6
Packaging: Reel in a Box
Shipping Weight: 17.0 kg G.W.
Applications: Indoor and Outdoor Use
Operating Temperature: -40° C through +75 C
U.V. Protected Complies with UL 1581

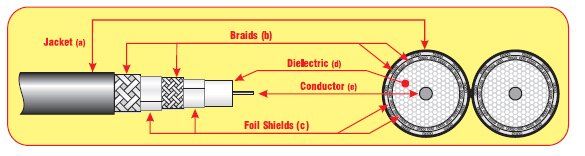

(a) Jacket: Nominal OD: 7.60 ± 0.15mm
Material: UV Resistant PVC
Color: Black
(b) Braids: Material: Aluminum Magnesium Alloy
Braid Wire Count: 64 (inner) & 48 (outer)
Braid Coverage: 60% & 40%
(c) Foil Shields: Material: Aluminum Foil
Adhesive: EAA
Foil Shield Coverage: 100% (18% overlap minimum)
(d) Dielectric: Material: Gas Injected Foam PE
Nominal OD: 4.57 ± 0.10mm
(e) Conductor: Material: Solid Copper
Nominal OD: 1.02 ± 0.01mm (18 ga)
