305Mtr MaxPipe RG6 Quad Austar Approved

Stock Code:
PVBCX2103-305AUS
Price:
$0.00 excl GST

Description

Coax Type: RG6 Quad Shield
Packaging: RIB, R1K
Shipping Weight: RIB = 37.5, R1K = 38 lbs
Applications: Indoor and Outdoor Use
Operating Temperature: -30° C through +75 C
Attenuation in dB / 100 ft at 68° F (20° C)
Impedance: 75 Ohms ± 3 Ohms
Capacitance: 16.2 PF/ft
Velocity of Propagation: 83%
Nominal Delay: 1.22 NS/ft
Conductor DC Resistance: 29.9 Ohms / 1000 ft
Shield DC Resistance: 4.8 Ohms / 1000 ft
Swept Tested: 5 MHZ~3000 MHZ
UL: CM
Footage markers: Every 2 ft

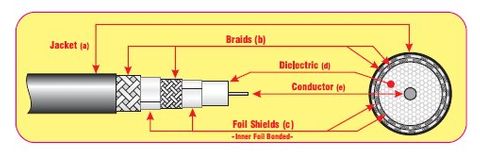

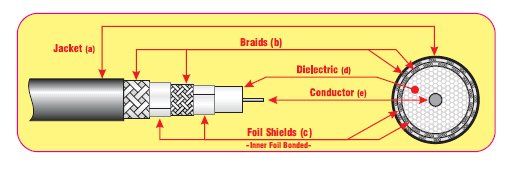

(a) Jacket Nominal OD: .295” 7.49mm
Material: UV Resistant PVC
Colors: Black, White
(b) Braids Material: #34 AWG Aluminum Alloy
Braid Coverage: 60% & 40%
(c) Foil Shields Material: Aluminum/Laminant/Aluminum
Adhesive: EAA
Foil Shield Coverage: 100% (18% overlap minimum)
Shielded Core OD: .188” 4.78mm
(d) Dielectric Material: Gas Injected Foam PE
Nominal OD: .180” 4.57mm
(e) Conductor Material: Copper-Clad Steel
Nominal OD: .0403” 1.02mm (18 ga)

RoHS
COMPLIANT
