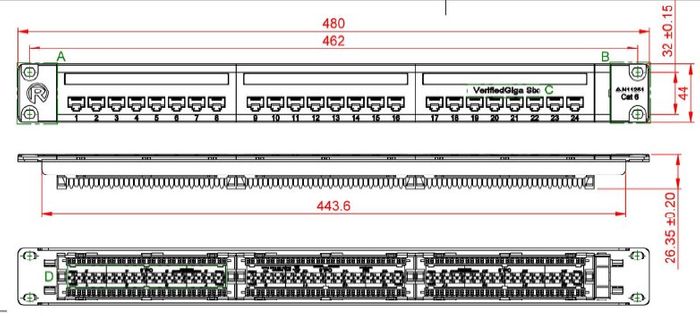

Cat6 24Port Patch Panel Radum

Stock Code:
RJO1630-Radum
Price:
$68.00 excl GST

Description

Radum Cat.6 Patch Panels are used for high speed LAN's Transmission. they were developed with high technology Printed circuit board and the IDC terminal block can be used with Krone/110 mpact tools It has comined T568A & T568B color cording. Come with Cables manager.ETL Verified Chanel to ANSI/TIA-568-B.2-1 Category 6

MATERIAL:
Panel: SPCC black powder painting coat finish.
Plastic Frame: ABS high-impact UL94V-0 thermoplastic
Contact Holder: ABS high-impact UL94V-0 thermoplastic
Spring Wire: Phosphor bronze 5100w temper wire Dia = 0.45mm, 3U" AU/30U" PdNi over 60U" Nickel undercoat
IDC Plastic: Polycarbonate resin high-impact UL94V-2
IDC Contact: Phosphor bronze C5191R-H, T=0.4mm, 80U" Nickel plated

PHYSICAL CHARACTERISTICS:
Suitable Impact Tool: 110/Krone Style punch down tool
Insertion Life: 750 mating cycles with FCC compliant RJ-45 plug
Contact Force: 100grams with FCC compliant RJ-45 plug
Plug Retention Force: 11 LBF Min
Durability: 200 termination cycles
Contact Compatibility: Accommodates 22 To 26 AWG Solid / 24 AWG Stranded
Operating Temperature Range: -10Dc To 60Dc
Storage Temperature Range: -40Dc To 68Dc
Humudity: 10% ~ 90%RH

ELECTRICAL:
Insulation Resistance: 500Mohm
Dielectric Withstanding Voltage: 1000V
DC Current Rating: 1.5Amps
DC Resistance: 0.1Ohm
Contact Resistance: 20Mohm
