Cat6 48Port 1RU Patch Panel

Stock Code:
RJO1648
Price:
$216.00 excl GST

Description

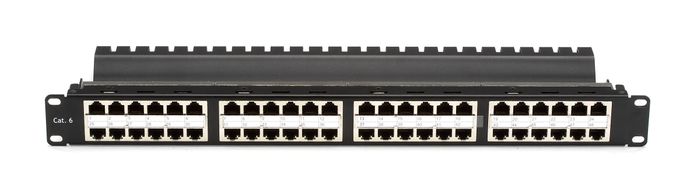

Cat 6 1RU 48 Port Patch Panel - Universal Termination

Patch Panels are the backbone of a structured cabling solution and we understand the importance of installing quality products. These Cat 6 RJ45 48 Port Keystone Style Patch Panels provide a fast and simple way to terminate. With the built-in cable management and write-on labels, organising your cabinet will no longer be a hassle. The Cat 6 1RU 48 Port Patch Panel is supplied with a plastic cable management rail which keeps the installation neat and tidy as well as reducing strain on the cables. The main advantage of using the Keystone Jack Patch Panel is that the outlets are easily replaceable so if an outlet gets damaged there is no need to replace the entire patch panel - simply replace the individual jack.

FEATURES

T-568A/B Wiring
RJ45 complies with FCC Part 68 Standard
110/KATT Dual IDC connector compatible
Provides termination for 22-26 AWG.
Can be terminated using both a KATT & 110 Tool.
Patented dust covers.
Provides termination for 22-26 AWG.
Cable Management lacing supplied with the panel.

SPECIFICATIONS

Contacts are 50u” gold-plated
Jack insertion life >750 mating cycles
IDC insertion life cycles >250 mating cycles
Operating Temperature: -40 - +60 C
Contact Resistance: 20m ohm
Current Rating 1.5Amps
DC Resistance: Max. 0.1 ohm
Insulation Resistance: 500m ohm
Dielectric Withstanding Voltage: 1000V
ROHS Compliant
