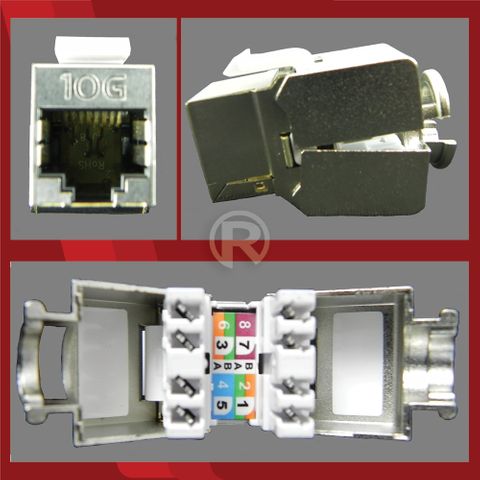

Cat6A 10Gig Keystone Jack Fully Shield

Stock Code:
RJO6AJK
Price:
$9.60 excl GST

Description

MATERIAL:
Bracket: SUS304
Keystone Jack Housing: Zine Alloys Zamac 3
Spring Wire: Phosphor Bronze 5100W temper Wire 0.45mm, 50u" Gold Over 100u" Nickel Undercoat
IDC Plastic: Polycarbonate Resin high - Impact UL940-0 Thermoplastic.
IDC Contact: Phosphor Bronze C5191R-H, T= 0.4mm, 200u" Tin Over 50u" Nickel Undercoat.

PHYSICAL CHARACTERISTICS:
Insertion Life: 750 Mating Cycles With Fcc Compliant RJ-45 Plug
Contact Force: 10Grams With FCC Compliant RJ-45 Plug
Plug Retention Force: 11 LBF Min
Durability: 200 Termination Cycles
Contact Compatibility: Accommodates 22 To 26 AWG Solid.
Operating Temperature Range: -10 C To 60 C
Storage Tempearature Range: -40 C To 68 C
Humidity: 10% ~ 90% RH

ELECTRICAL:
Insulation resistance: 500 Mohm
Dielectric withstanding Voltage: 1000 V
DC Current Rating: 1.5 Amps
DC Resistance: 0.1Ohm
Contact Resistance: 20mOhm
