10.0m LC to LC SM Duplex Lead

Stock Code:
FOPLLL-SM-10YW
Price:
$26.00 excl GST

Description

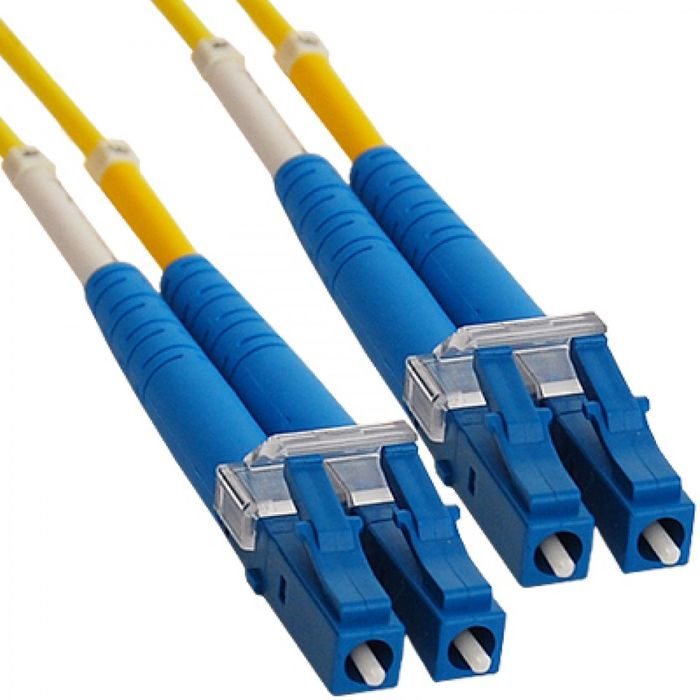

LC - LC Singlemode 9/125 Mn Duplex Fibre Patch Lead

FEATURE:
. Simplex, duplex patch cords available
. Connector: ST/SC/FC/LC/DIN/MTRJ/D4/FDDI/MU/E2000/SMA/ESCON/MTP(MPO)
. Single mode fiber: 9/125um ( OS1)
. Multimode fiber: 50/125 (OM2, OM3) ,62.5/125um (OM1)
. Made by advanced ceramic sleeve
. PC, UPC, APC polishing


TECHNICAL:
. Fiber type: single mode 9/125 ( OS1), multi-mode 50/125(OM2, OM3), 62.5/125 ( OM1)
. Cable type: simplex(1F)/Duplex(2F)/multi-core (4F, 6, 8, 12, 24, 48, 72, 96)
. Cable length: 0.5m, 1m, 2m, 3m, 5m, 10m, 15m, 20m or customized
. Jacket: PVC or LSZH
. Diameter: 0.9mm, 2.0mm/3.0mm or cutomized
. Optical performance: . . . Insertion loss: =0.3dB
Return loss: PC=45dB
UPC=50dB
APC=60dB . . Mechanical testing: repeatability =0.2dB, 1,000 times mating cycles
. Working temperature: -25 to +75°C
. Storage temperature: -45 to +85°C

COLOR:
. Standard: Yellow
. Available: Pink, Grey, Blue, Red, Black, Orange, Green

THEY CAN BE CUSTOM MADE TO ANY LENGTH
