45U(2.2) x 800mmw x 1200mmD ST Series

Stock Code:
CABTST812045BK
Price:
$0.00 excl GST

Description

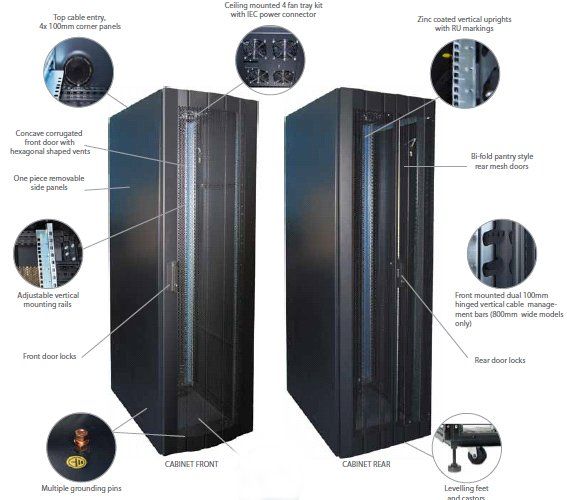

FEATURES
Supplied with fans, cage nuts, castors, levelling feet
Static loading: 1500kg
Removable one piece side panels
Double pipe profile frame connected by “3T” system
Supplied standard with single front & dual rear hexagonal “V” doors
Front door can be hinged left or right side
Front and rear doors are lockable
Front and rear doors can be opened to 130°
Vertical mounting profile can be adjusted in 25mm increments
S shaped vertical uprights adjustable forward and backward
Optional side vertical cable tray available
Optional baying kit available for cabinet interconnection (RABST)
Supplied complete or in Fast Assembly Flat Pack format (FP codes)
Gloss black colour, easy clean surface
Material: SPCC quality cold rolled steel
Surface Finish: Degreasing, pickling, phosphoric, cleaning, powder Coated
Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1,
DIN41494; PART7, GB/T3047.2-92, IP20 rated
2 Year Warranty. Subject to use within the static loading specifications and
operation within normal environmental conditions
