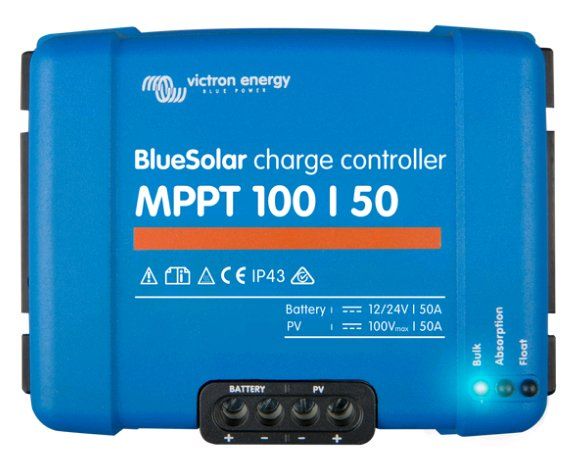

MPPT Controller 100/50

Stock Code:
VE-MPPT-100/50
Price:
$465.00 excl GST

Description

Feature highlights common to all models
• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection in case of partial shading conditions
• Outstanding conversion efficiency
• Natural convection cooling (except for the 150/70 and 150/85 CAN-bus models)
• Automatic battery voltage recognition
• Flexible charge algorithm
• Over temperature protection and power derating when temperature is high.
SmartSolar and BlueSolar:
• SmartSolar models have Bluetooth built-in.
• BlueSolar models can be made Bluetooth accessible by connecting a VE.Direct Bluetooth Smart
dongle. Advantage: the products are not accessible when no dongle is connected.
Low Power models with load output (see table on page 2)
• See the appendix of the respective manuals for load output disconnect and reconnect options,
including BatteryLife algorithm.
Day/night timing and light dimming on the low power models with a load output
• Use the VE.Direct TX digital output cable, and VictronConnect to configure.
Virtual load output, including day/night timing and BatteryLife algorithm on the higher power models
• Use the VE.Direct TX digital output cable and connect to a BatteryProtect or a solid state relay.
Use VictronConnect to configure.

Display options
• MPPT Control: connects to all models with a VE.Direct port, except the BlueSolar MPPT 70/15.
(Does not connect to the 150/70 and 150/85 CAN-bus models)
• SmartSolar Control Display: a plug-on display compatible with all models 150/45 and higher.
Both displays can be connected to one controller simultaneously.
• Color Control GX and other GX devices: see the GX product family on our website.
• VRM website: see the VRM portal documentation on our website.
Remote firmware updating
• See VRM: Remote firmware update on our website
