Cat6/6A Shielded RJ45 Plug IDC Terminati

Stock Code:
DE-RJ45IDC
Price:
$20.00 excl GST

Description

DETAILS

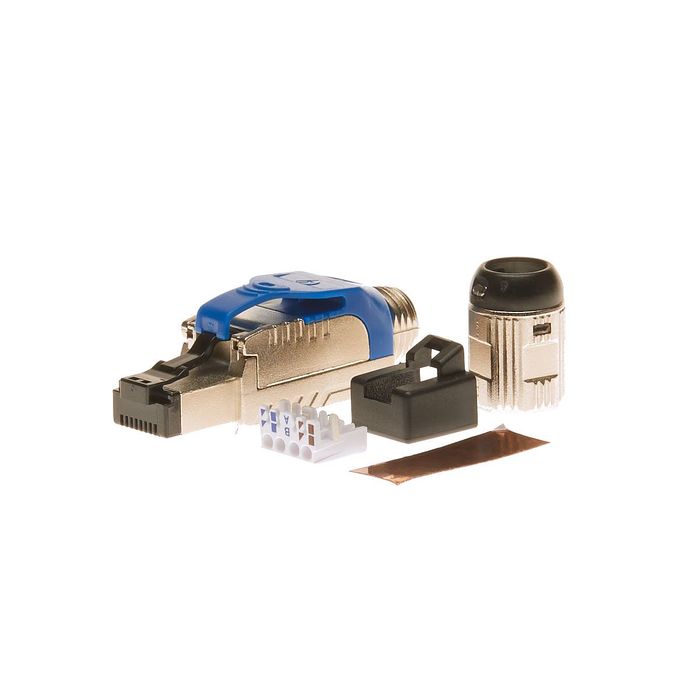

CAT6A SHIELDED FIELD TERMINATION TOOLLESS PLUG
The Shielded Field Termination Plug is designed to terminate CAT6A or CAT7 with a larger diameter 23AWG - 26AWG.Perfect for quick and reliable installation.


FEATURES:
Fully Shielded with Zinc Alloy housing to prevent crosstalk
Supports 23AWG - 26 AWG solid or stranded shielded CAT6A cable with an outside diameter between 6.0 and 7.5mm
Open hinged design to simplify termination of shielded cable

MATERIAL:
Extractor: PC, UL 94V-2
Housing: Zinc die-casting with Nickel plated
RJ45 plug:
Housing: PC, UL 94V-2
Contact material: Phosphor bronze with 100 micro-inch nickel plated
Contact finish: Min. 50 micro-inch gold plated on surface contact area.
Cover: Zinc die-casting with Nickel plated
Wire management bar: PC, UL 94-V2
IDC:
Housing: PC, UL 94-V2
Terminal: Titanium copper with tin plated
Grounding contact: Zinc die-casting with Nickel plated
Boot:
Housing: Zinc die-casting with Nickel plated
SR: PC, UL 94V-2
CAP: PC, UL 94V-2
PCB: UL 94-V0
Copper foil tape
Dust cap: PE

PERFORMANCE:
T568A & T568B wiring
Insertion force: Max. 30N (IEC 60603-7-5).
Retention strength: 7.7kg between jack and plug
Operating temperature: -10­C to 60C (ISO/IEC 11801. ANSI/TIA 569 C.2)
Life (mating cycles):
750 cycles min. (ISO/IEC 11801, ANSI/ TIA 568 C.2)
IDC: Suitable for 23-26AWG stranded and solid wire, min. 20 installation cycles.
Suitable for cable jacket OD: 6.0-7.5mm
