Integration Module, (priter,ASCII,C-Bus)

Stock Code:
PDX-PRT3
Price:
$0.00 excl GST

Description

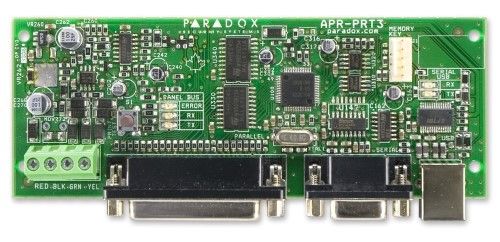

The Paradox PRT3 Integration Module is a printer module that allows you to automatically print live and stored events. It provides an interface between an EVO control panel and third party peripheral systems as well as including a USB port for direct PC connections. The PRT3 is also able to be upgraded in the field using the CV4USB converter kit.

In-field firmware upgradeable via a CV4USB and the In-field Firmware Upgrade Software
Supports ASCII/C-BUS protocols
16 virtual inputs to trigger an action in the EVO control panel based on an event received from the peripheral system using ASCII or C-BUS protocol
30 virtual PGMs to trigger an action in the peripheral system based on an event received from the EVO control panel using ASCII or C-BUS protocol
USB port for PC connections
Provides an interface between an EVO control panel and a third-party peripheral system
Automatically/manually prints reports of zone/system events via printer or PC
Parallel and serial port for printer connections
Assign to 1 or more partitions
2,048 event buffer
Available in multiple languages
