Rolling Jack to Suit DFPL712B / DFPA712B

Stock Code:
RDMH-DFPL712B-RJ
Price:
$908.18 excl GST

Description

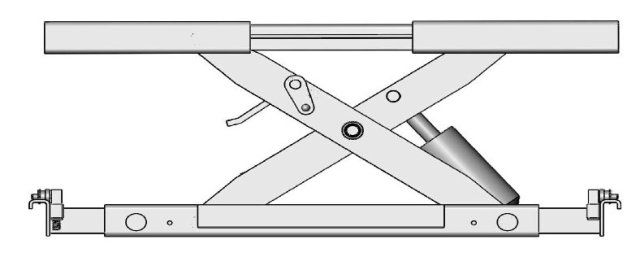

Rolling Jack to Suit DFPL712B/DFPA712B 4 Post Hoist.

Air/Hydraulic Pump (Eagle Pro).
Supplied with 2 x Rubber Blocks.
Active safety lock.
Adjustable Platforms.
Adjustable Mounting brackets.
Incorporated rollers for easy rolling up and down runway.

Specifications:
Lifting capacity: 2000kg (2Ton).
Unit Height (Bottom to Top): Min 190- Max 455mm.
Lifting Range: 265mm.
Adjustable platforms: 690-1175mm.
Platform width: 284mm.
Adjustable mounting brackets: 880-1345mm.
Mounting bracket width: 508mm.
Rubber Blocks: 165mm x 100mm x 30mm

Air/Hydraulic Pump Spec:
Pressure Rating: 700 Bar (10,000 psi)
Air Source Pressure: 0.6 - 1.0 Mpa
Air Volume: 300 l/min (11 cfm)
Effective Oil Capacity: 1600 cm3
Flow (NO Load): 811 cm3/min
Flow (Load): 124 cm3/min
Input port: 1/4"
Output port: 3/8"
Dimension: 263 (L) x 136 (W) x 182 (H)
Weight: 8 kgs

Packaging:
- Weight: 130kg
- Package Size: 880mm x 550mm x 190mm
