305Mtr Cat6A 4pr U/FTP W/B Solid Outdoor
Description
STYLE: 60°C 300V Communication Cable
SIZE: U/FTP 23AWGx4P
Stock Code: BCUGCAT6A
STANDARD: TIA-568-C.2 , IEC60332-1-2
APPLICATION: Local Area Network cables are suitable for perfect audio data and
video of transfer for horizontal network

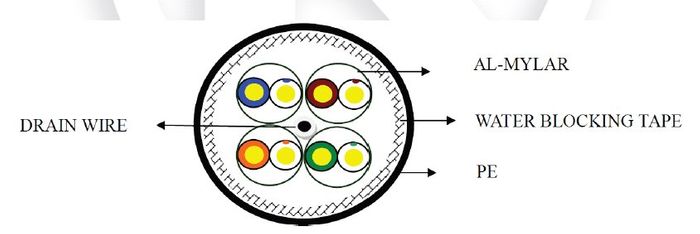

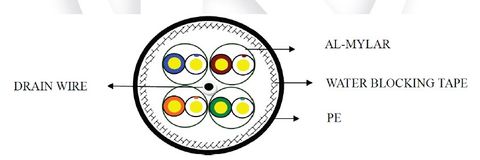

CONSTRUCTION:
CONDUCTOR:
Size: 23AWG
Construction: Solid Bare Copper
INSULATION:
Avg. Thick.: 0.385 mm
Min. Thick.: 0.335 mm
Diameter: 1.32 +/- 0.02 mm
Material: Foam Skin PE
Colour Codes: 1. Blue x White
2. Orange x White
3. Green x White
4. Brown x White
SHIELDED:
Pair Stranded: 2 Cores Stranded
Shielded: Al-Mylar Tape (Each Pair)
Assembly: Stranded, 4 Pair Stranded
Drain Wire: TD 0.43 mm
Diameter: 6.15 +/- 0.25 mm
WRAPPED:
Water Blocking Tape: 0.30 mm
JACKETED:
Avg. Thick.: 0.50 mm
Min. Thick.: 0.45 mm
Diameter: 7.80 +/- 0.25mm
Material: PE
Colour: Grey or other colour
PACKAGING
*According to Customer’s request
*According to Radum’s Standard
ELECTRICAL & PHYSICAL PROPERTIES
ITEM: 23AWG x 4P
RATING TEMP VOLTAGE: 60°C 300V
CONDUCTOR RESISTANCE: 9.38 OHM / 100m / 20°C Max.
DIELECTRIC STRENGTH: AC 1.5 KV / 2 Sec
SPARK TEST: 2.5 KV
INSULATION:
UNAGED Tensile Strength 1200 PSI Min. (0.85 kg/m m2)
Elongation 100% Min.
AGED Tensile Strength Unaged Min. 75% (100°C x 48hrs)
Elongation Unaged Min. 75% (100°C x 48hrs)
JACKETED UNAGED Tensile Strength 1200 PSI Min. (0.85kg/m m2)
Elongation 100% Min.
AGED Tensile Strength Unaged Min. 75% (100°C x 48hrs)
Elongation Unaged Min. 75% (100°C x 48hrs)
INSULATION SHRINKBACK: 5% Max. (130°C x 1hr)
COLD BEND TEST: -20°C x 4hrs No Crack
FLAME RETARDANT TEST: IEC 60332-1-2
DC RESISTANCE UNBALANCE 4% MAX
PAIR-TO-GROUND CAPACITANCE UNBALANCE: 160 pF/100m Max.
CHARACTERISTIC IMPEDANCE: 100+/-5 Ohms at 100MHz
PROPAGATION DELAY: 500MHz 535nS / 100m Max.
DELAY SKEW: 4~500MHz 45nS / 100m Max.
MARKING:
WWW.RADUM.COM.AU CAT6A U/FTP 23AWG 4PR CMX Outdoor ANSI/TIA 568C.2
RoHS Compliant XXXM
