English Wheel

Stock Code:
RDM-LD-A01011
Price:
$777.27 excl GST

Description

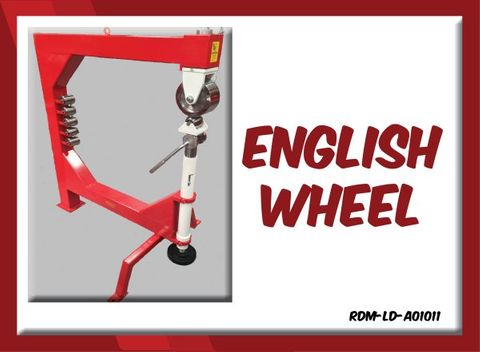

Professional Heavy Duty English Wheel

Professional Heavy Duty English Wheel is an all steal constuction. English wheels are used to shape, stretch and smooth dents, welded seams out of metal such as mild steal (16 gauge), aluminum and copper (14 gauge). The English Wheel can be used by professional or hobbiest to shape fenders, panels, dashboards, fuel tanks on custom cars, motorcycles, airplanes, etc.. The English Wheel has a 37-3/4" (952mm) throat capacity allows the user to fabricate compound curves, beads and rolls on large metal working. Great for car and motorcycle rebuilders and restorations. The top wheel can turn 360 degrees allowing the user to fabricate larger metal workings at any angle he chooses by adjusting the upper screw. Also has a quick adjust/release cam rollers for the lower anvil yoke for easy use/levelling.

Comes with 6 (six) interchangeable, heat treated & hardened metal roll anvils with sealed bearings, 1 (one) large roll anvil. Total of 7 seven.

PRODUCT DESCRIPTION & AND FEATURE

Frame Tubing Size: 4"x4".
Frame Height: 1270mm (not overall height)
Frame Depth: 1040mm
Throat: 37-3/4"
90 Degree Swivel head
Top anvil roller wheel: Flat, 2.25"W x 6" Diameter
Bottom Roll Sizes: 1/8”, 1/2” and 3/4” Edge Radium x 6” Crown Radium, Flat With 5/16”x 1/4” Step 1.55”Wx0.65”D Groove, 0.82”Wx0.65”D Groove
2 Flat quick adust/release cam rollers
Max. Height 1430mm
Packing dimensions: 1,190 x 230 x 1,430mm Shipped in a wooden box
N.W.: 76.5kg
G.W.: 98.5kg
Colour: Red

PICTURED Items may vary...
