15w 4"+1.5" Two-way wall mount speaker

Stock Code:
PA-S774PW
Price:
$0.00 excl GST

Description

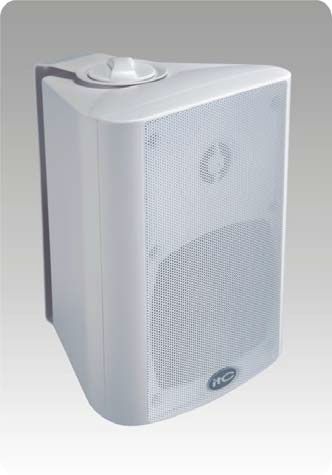

The 774W is a compact wall mount speaker with built-in 70v/100v transformer. The built-in 4”+1.5” two way speaker driver provides smooth, quality sound with wide frequency response (130-18kHz)

The metal grille, ABS enclosure and stainless mounting bracket are white, and the supplied bracket provides easy and secure wall or ceiling mount installation.

An ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Wall mount type loudspeaker 4” +1.5” two way speaker unit
Built-in 100v/70v transformer
Power taps 2.5w-5w-10w-20w @100V plus 8ohm
Metal grille, ABS enclosure and stainless mounting bracket

The 774PW is a wall mount speaker with built-in 70v/100v transformer.

Power Taps @100V: 2.5W, 5W, 10W, 20W
Transformer Impedance: 4KO/2KO/1KO/500O/245O
Input: 70V/100V/8O
SPL(1W/1M): 86dB Max. S
PL (Rated W/1M): 99dB
Frequency Response (-10dB): 130-18KHz
Finish Baffle: ABS, Black/White
Grille: Steel, Black/White
Speaker Driver: 4" x 1 1.5"x1
Dimensions: 222 x 160 x 160mm
Weight: 2.3kg
Mounting: With mounting bracket fixed by screw
