MEM, 680kg, Slimline Light Panel, Mon

Stock Code:
PDX-FSH-MEM2400LP
Price:
$0.00 excl GST

Description

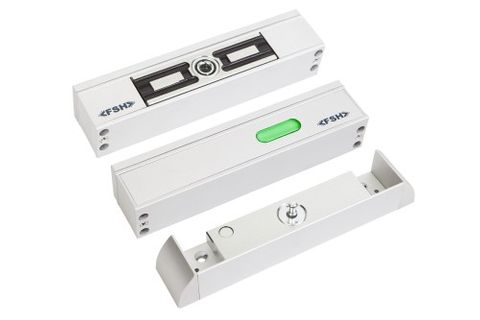

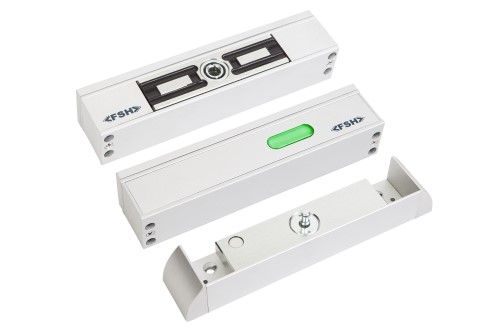

MEM, 680kg, Slimline Light Panel, Monitored LSS/DSS/EW, Surface Mount, 12/24V DC

The innovative slimline FSH-MEM2400LP Mechanical Electro Magnetic Lock has been designed as an alternative to standard magnetic locks especially suited for situations where door height or narrow profile door frames create installation restrictions and appearance is of paramount importance.

The patented MEM incorporates both magnetic and mechanical design principles to achieve a superior holding force of up to 1000kg, whilst being 75% smaller than a standard 600kg electro magnet.

The FSH-MEM2400LP is capable of opening with up to 70kg side pressure on the door and has the added security function of "Early Warning" alarm condition. The device comes with the FSH patented "Anti-Tamper-Bracket" as standard.

MEM Lock is recommended to be used on doors <2400mm

Slimline design 75% smaller than a standard 600kg magnet
High holding force up to 1000kg and releases under side load of up to 70kg
Dual-voltage 12/24VDC low power consumption 24VDC/120mA
Simple installation
4 hour fire rated
Full monitoring lock status sensor (LSS) and door status sensor (DSS)
Early warning alarm (EW)
Anti tamper bracket (to protect the armature plates fixing bolt)
