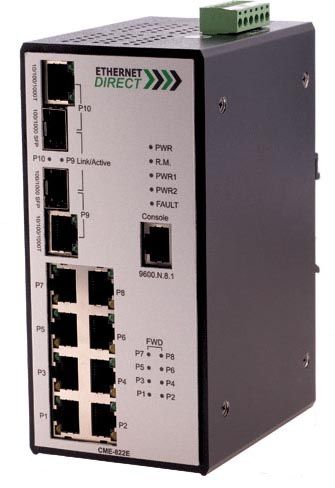

Managed Inds POE 8 x10/100TX + 2SFP Slot

Stock Code:
AA-CME-822E
Price:
$1,950.00 excl GST

Description

Spec

Interface
• Total Ports: 10
• RJ-45 Ports: 8x 10/100Mbps
• Fibre Ports: 2x Paired 10/100/1000Mbps or 100/1000Mbps SFP Slots
• Alarm Contact: 1A@24VDC
Physical
• Case: IP-30
• Dimensions: 72mm (W) x 105mm (H) x 152mm (D)
• Installation: DIN-Rail or Wall Mounted
PoE
• PoE Compliance: 802.3af
• PoE Classification: Power Sourcing Equipment (PSE)
• PoE Voltage: 48VDC
• PoE Power: Up to 15.4W per port
Power Requirements
• Power Input: 48VDC, redundant power inputs
Power Consumption
• Without PoE: 9.7W
• With PoE (Full Load): 134W
Environmental
• Operating Temperature: -40 to 80 C
• Storage Temperature: -40 to 85 C
• Operating Humidity: 5% to 95% RH (Non-condensing)
Regulatory Approvals
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Free Fall: IEC 60068-2-32
• MTBF: 190,288 hours based on Mil-Hdbk-217F, GB
