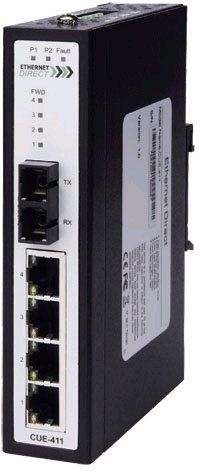

Ind POE Switch 4 x 10/100TX PoE + 1xMMSC

Stock Code:
AA-CUE-411
Price:
$0.00 excl GST

Description

Spec
• Total Ports: 5
• RJ-45 Ports: 4x 10/100Mbps
• Fibre Ports: 1x 100Base-FX Mulitmode with SC Connection
• Alarm Contact: 1A@24VDC
Physical
• Case: IP-30
• Dimensions: 30 mm (W) x 140 mm (H) x 95 mm (D)
• Installation: DIN-Rail or Wall Mounted
PoE
• PoE Compliance: 802.3af
• PoE Classification: Power Sourcing Equipment (PSE)
• PoE Voltage: 48VDC
• PoE Power: Up to 15.4W per port
Power Requirements
• Power Input: 48VDC, redundant power inputs
Power Consumption
• Without PoE: 4.6W
• With PoE (Full Load): 68W
Environmental
• Operating Temperature: -10 to 70 C
• Storage Temperature: -40 to 85 C
• Operating Humidity: 5% to 95% RH (Non-condensing)
Regulatory Approvals
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Free Fall: IEC 60068-2-32
• MTBF: 421,106 hours based on Mil-Hdbk-217F, GB
