Industial Mini Gbic MM LC 850nm.

Stock Code:
AA-IMGBIC-MLC
Price:
$0.00 excl GST

Description

ALLOY IMGBIC-MLC

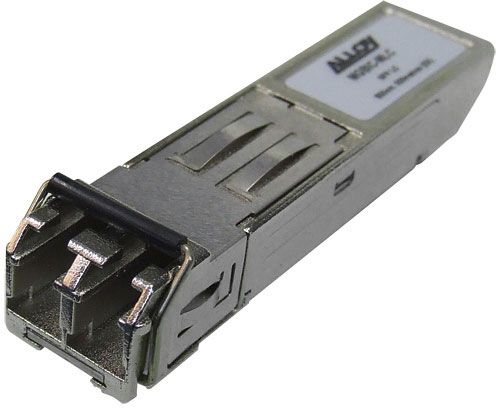

Industrial Multimode SFP Module 1000Base-SX, 850nm, 550m, -40° to 85° C
The IMGBIC-MLC is a 1000Base-SX Multimode Fibre SFP module that can be installed into any of the Ethernet Direct Industrial Devices supporting a SFP module.

All models support a wide temperature range of -40 to 85 C allowing them to be installed into the Ethernet Direct range of Industrial products.

With the ability to withstand both high and low temperature ranges these modules are ideal to the industrial market where excessive temperature ranges exist.

Spec

Interface
• 1000Base-SX Multimode Fibre
Data Rate
• 1.25Gbps
Distance
• Maximum 550m
Fibre
• Receive Sensitivity: -18dBm
• Transmit Power: -3.5dBm
• Wavelength: 850nm
Power
• Input Voltage: Max. 3.47V
• Supply Current: Max. 300mA
Environmental
• Operating Temperature: -40° to 85° C
• Storage Temperature: -40° to 85° C
