F8 OFC Clear 84/0.20 (2.5mm2)Strands

Stock Code:
BCA0032-100
Price:
$0.00 excl GST

Description

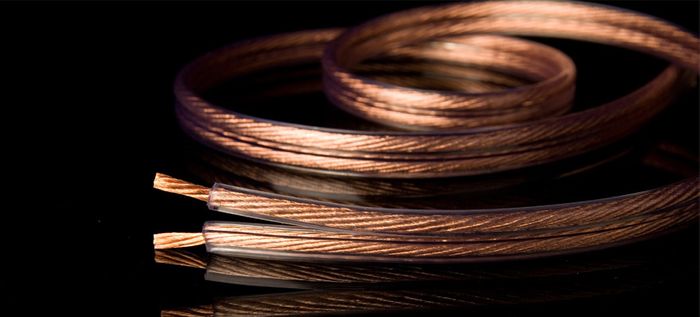

LOW LOSS OFC 84/0.20 F8 Speaker Cable

CONSTRUCTION :

Number of Conductors ----- Two.
Conductors -------------------- 84 strands of 0.20mm Oxygen Free.
Construction details --------- 84 strands twisted into a 240mm Diameter bunch.
Insulation Thickness -------- 100mm
Insulation ---------------------- Flame Retardant V75 Non Migrating PVC.
Jacket Colour ----------------- Clear.
Jacket O/D --------------------- 8.9mm by 4.4mm.

PRINTING: One Conductor Black printing on the Clear sheath as below.
Printing to be repeated at approximately 0.05m intervals.
One Conductor Black 2.0mm wide continuous stripe.

RADUM LOW LOSS OFC 84/0.20

PACKING:

Note ---- The Diameter of the Centre hole in the drum MUST be
at least 30mm or the shipment will be rejected.
100m Plastic / Wooden Drum ( 1 by 100m drum per cardboard Box).

SHIPPING MARK: ---- RADUM in a Triangle.

LABELLING: ---- On the outside of each Drum flange.

BCA0032-100
RADUM LOW LOSS OFC CABLE
84 Strands of 0.20mm
Length – 100m
