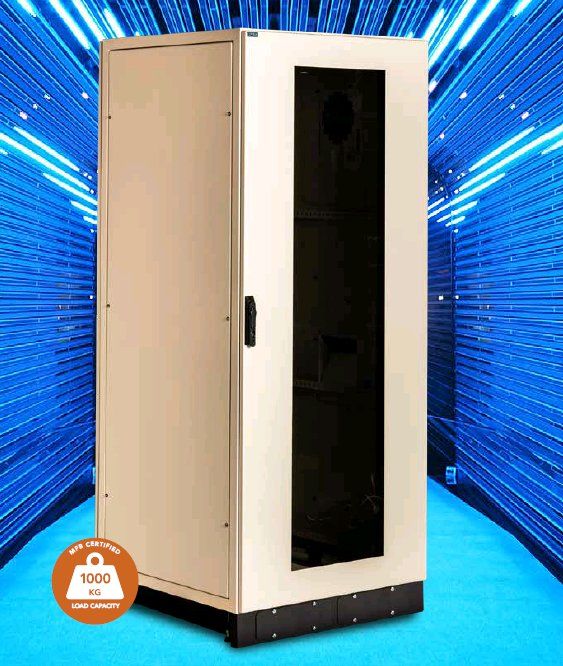

IP66 18RU x 600 x 800 Industrial Cabinet

Stock Code:
CABODIP661868
Price:
$5,520.00 excl GST

Description

IP 66 Industrial Cabinet
The S280 Industrial range is an
enclosure designed for harsh or tough
indoor and outdoor environments.
Suited to process control applications,
remote site applications, and anywhere
that demands a high level of protection
for equipment.

Feature:
Dust & Moisture: IP66 rated*

Frame: Heavy duty, continuous seam welded
1000kg load rated

Plinth: Standard 90mm high

Levelling Levelling feet: Standard

Bolt Down Provisions: Standard

Doors: Fitted with wind stopsConcealed multipoint hinges Protected multipoint locking system Lift and swing handle with key lock
LH to RH reversible 180ยบ swing

IP Seal: All doors and sides are sealed using purpose made Form in Place foam gaskets for a high standard IP seal rating

Rack Mounting Angle: Adjustable front & rear

Cable Access: Provided at the base combining of two 50 x 200 cut-outs fitted with cover plates

Lifting Eye Bolts: Standard - 400kg lift rated
