300m 2 Pair 7/0.25 Indi Screen Data Cabl

Stock Code:
BCP27025-300
Price:
$0.00 excl GST

Description

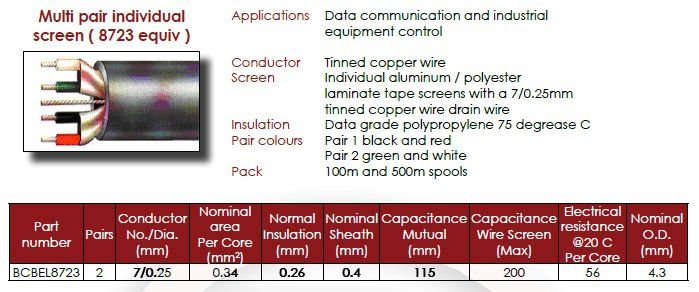

CONSTRUCTION
Type 2 Pair 7/0.25 Individual Screened Data Cable
Conductor Stranded 22 AWG 7 Strands x 0.25mm Tinned Copper
Insulation 0.26mm 75°C Polypropylene
1st Pair Red & Black
2nd Pair Colours White & Green
Pair Shielding Individual Aluminium Polyester Laminate Tape
Construction Pairs cabled on common axis to reduce diameter
Drain Wire 7 strands x 0.25mm Tinned Copper
Jacket Fire Retardant PVC Non Migrating
Jacket Colour Grey
Jacket O/D 4.27mm
Impedance 45 Ohm
Insulation Resistance 100 mega ohms between shields
Working Voltage 50 Volts between adjacent shields

*** Printing **
Black Printing on the Grey Sheath
Printing to be repeated at approximately 0.05m intervals
WWW.RADUM.COM.AU RADUM 2P INDI SCREENED DATA CABLE N11251
Shipping Mark RADUM in a triangle

*** Packing ***
Note: The Diameter of the Centre hole in the drum MUST be at least 30mm or the shipment will be rejected
100m Drum (4 by 100m drum per cardboard box)
500m Drum (1 by 500m drum per cardboard box)
Labelling On the outside of each drum flange
On the 100m Drum
BCP27025-100
RADUM 2 Pair Individual
Screened Data Cable N11251
Length - 100m On the 500m Drum
BCP27025-500
RADUM 2 Pair Individual Screened Data Cable N11251
Length - 500m
On the outside of each packing box
On the 100m Drum
BCP27025-500
RADUM 2 Pair Individual
Screened Data Cable N11251
Quantity: 4 x 100m On the 500m Drum
BCP27025-500
RADUM 2 Pair Individual
Screened Data Cable N11251
Quantity: 1 x 500m
