HDMI Extender Over Cat5/6 IR POE

Stock Code:
HDMIEXT-POE50
Price:
$156.00 excl GST

Description

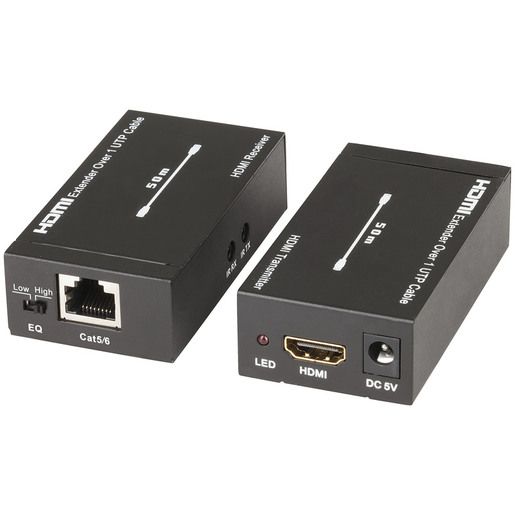

This is a 50m 1080P cost-effective HDMI extender, and offers the extension of full HD video, 2CH audio and IR pass through up to 50m/164ft along a single Cat X cable. With a feature set including transmission of uncompressed 1080p HD video@60Hz, stereo audio, one-way IR pass through and PoC (Power over Cat X cable).

With the PoC or PoE function, the receiver can be powered by transmitter without additional power adaptor. It offers the added benefit of an incredibly low-profile for a greatly reduced form factor behind the screen for even more convenience and ease of installation at the display zone.

The Receiver offers manual EQ DIP settings to adjust transmissions by distance for optimal signal delivery to the display.

Features

v Simple and cost-effective HDMI Extender
v Uncompressed 1080P/60Hz up to 50 meters over Cat 6/6a/Cat 7 cable
v Uncompressed 1080P/60Hz up to 40 meters over Cat 5e cable
v HDCP1.4 compliance
v Independent HDMI equalization adjustment button on receiver.
v IR pass through from receiver to transmitter
v Built-in PoC, receiver can be powered by transmitter
v Built-in ESD: ±8kV (air-gap discharge) & ±4kV (contact discharge)
v Built-in Surge protection: Voltage ± 1kV
v Compact size for easy installation.
