1 Amp DPDT Relay Board

Stock Code:
PDX-995085
Price:
$0.00 excl GST

Description

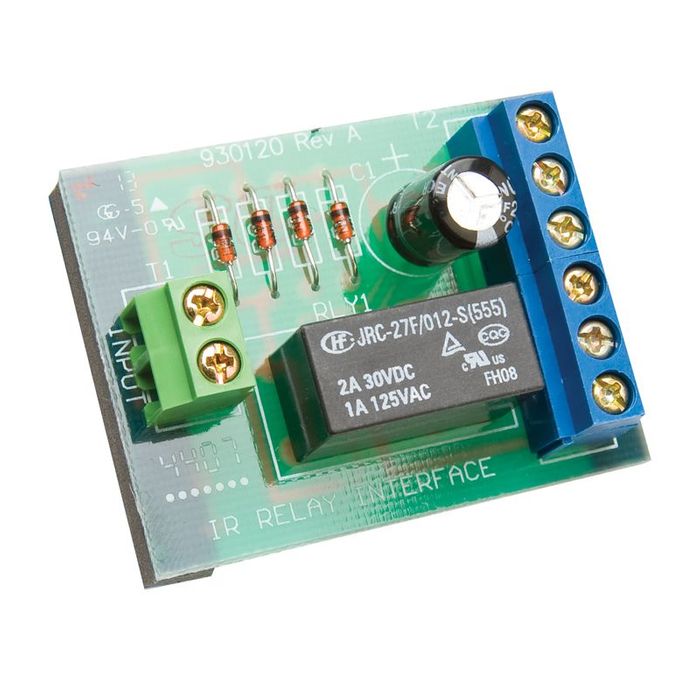

The 1 Amp Double-pole, double throw Relay interface provides low voltage relay outputs offering a general purpose switched interface. A single relay is provided with connections for two independent sets of contacts.
The relays can be switched by any Open collector Auxiliary output capable of switching a minimum of 20mA.

Convert open collector outputs into relay outputs
Connect to any Siren output
1Amp DPDT contacts

38mm(W) x 48mm(L) x 20mm(H)
Current Consumption - 15mA per relay
