8 Core 7/0.20 OAS Data Cable

Stock Code:
BCC1120-500
Price:
$0.00 excl GST

Description

RADUM MULTICORE Over ALL Screened Data Cable

USE : For connecting Serial RS 232 & 4-20Ma loop circuit DATA terminal &
communication equipment in a limited distance & unbalanced mode.

NOTE : These cables are low voltage cables and must not be used in the
direct connection of equipment to mains power supplies.

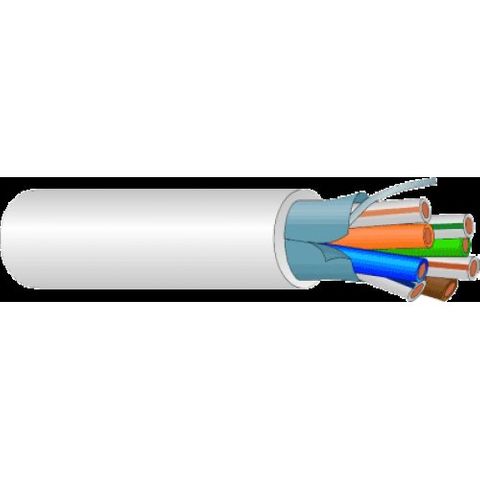

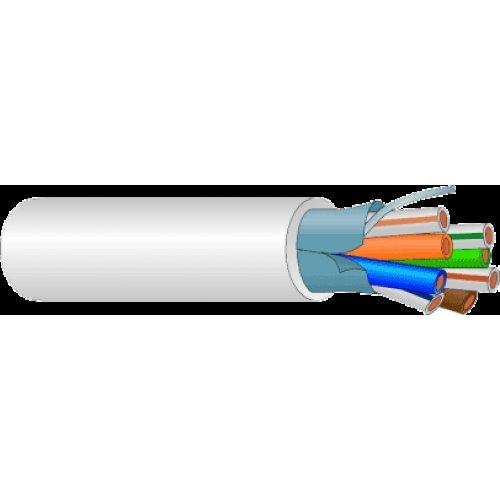

CONSTRUCTION :

Conductor ---------------- Stranded 24 AWG. 7 strands x 0.20mm
Insulation ------------------ 80 Degree Centigrade 300Volt Polypropylene.
Shielding ------------------- Aluminium Polyester Laminate Foil Tape.
Drain Wire ---------------- 7 strands x 0.20mm
Jacket ----------------------- Flame Retardant PVC Non Migrating .
Jacket Colour ------------- Grey.

100m & 500m Drum’s ( 1 by 100m & 1 by 500m drum per cardboard BOX).
