BK 37RUx600Wx800D Fan + Castor

Stock Code:
CABTKB6837BK
Price:
$1,320.00 excl GST

Description

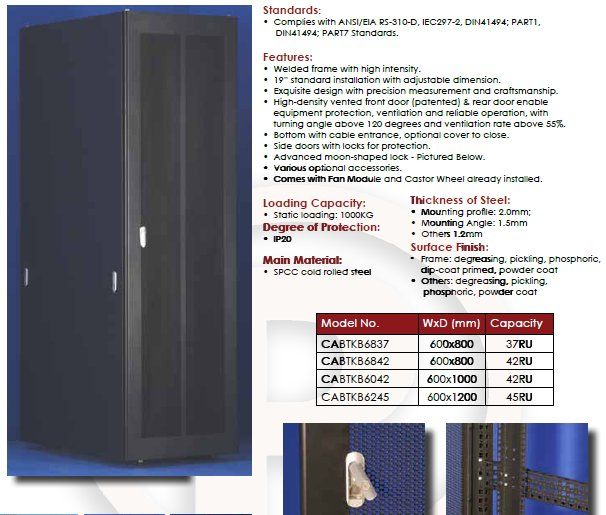

37RU x 600mmW x 800mmD Network Cabinet Fully Vented front door, Metal sides lockable , two sections rear vented door with 2 point lock Roof fan tray with 4 fans is fitted. Castor rails are fitted. Leveling feet can be fitted. Max carrying cap 1000Kg.


Standards:
. Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7 Standards.

Features:
. Exquisite design with precise dimension and Craftsmanship.
. High-density Welded frame.
. 19" standard installation with adjustable dimension.
. High-density vented front and rear door ( patented) enable equipment protection, ventilation and reliable operation with turning angle above 120 degrees and ventilation rate above 55%.
. Top with cable entrance, option with covers to close.
. Advanced Moon-shaped Lock for front/back and sides
. Adjustable Leveling feet and heavy duty castor.
. Removable/Lockable side panle & rear door, easy to install and maitain.
. 120mm cooling fans.
. Bottom cable entry.
. Various optional accessories.
. Comes with fan top and Castor wheel already installed.
. Efficent Cabinet baying kit.
. Optional Plinth enables cabinet to saty in a fixed position, meeting requirements of under-base cable entry/ventilation and prevention.

Loading Capacity:
. Static loading: 1000Kg

Degree of Protection:
. IP20

Main Material:
. SPCC Cold rolled steel.

Thickness of Steel:
. Mounting Profile: 2.0mm
. Mounting Angle: 1.5mm
. others 1.2mm

Surface Finish:
. Frame: dereasing, pickling, phosphoric, dip-coat primed, powder coated.
. Others: degreasing, pickling, phosphoric, powder coated

Color:
. Black
