3.3mm 2 x 105/0.20 G/L Cable

Stock Code:
BCGL003-100
Price:
$0.00 excl GST

Description

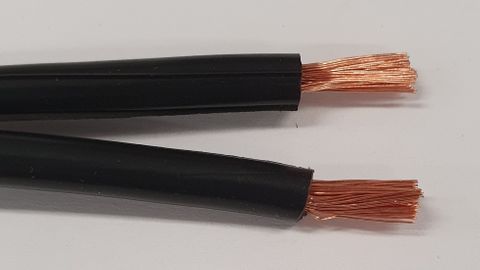

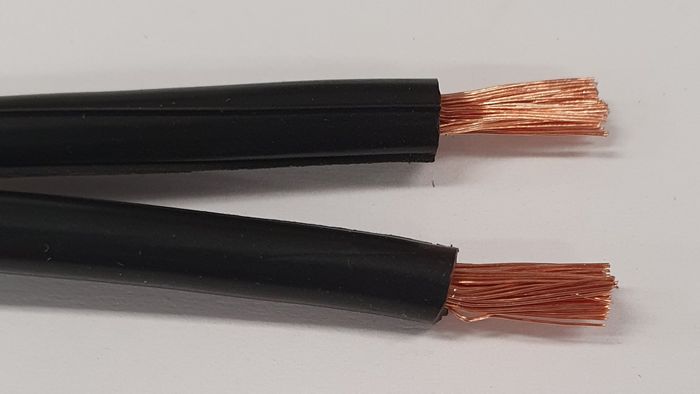

Figure.8 2 x 105/0.18 Cable


CONSTRUCTION : Parallel Webbed 105/0.18mm PVC sheathed wires.


Part Number ------------------------------ BCGL003-100 / BCGL003-300
Conductors --------------------- 105 strands 0.2mm
Nominal Area ----------------------------- 3.3 square mm.
Insulation Thickness -------------------- 1.15mm (+/- 0.10mm)
Nominal O/D ------------------------------ 5 x 10.30mm (+/- 0.20mm)
Copper Conductor Sheath ------------- Flame Retardant UV StabilisedV80 PVC.
Colours ----------------------- Black
Construction ------------------------------ Overall sheath MUST not stick to
Conductors.

100m to be packed 2 by 100m drums per cardboard Box .
300m to be packed 1 by 300m drum per cardboard Box.



Note: Not Suitable For Connection To Mains Power Supply.
