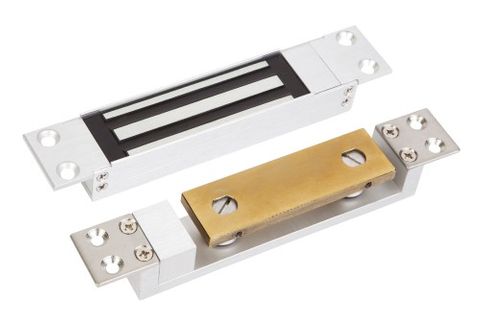

Magnetic Shear Lock Single 250KG Mon

Stock Code:
PDX-FSH2500
Price:
$0.00 excl GST

Description

FSH shear locks are an evolutionary product based on the proven EML concept, designed for applications where the door swings through a 180 degree arc. Whilst a standard EML provides a tensile force, a shear lock differs as it reists a shear or sliding force. When th eshear lock detects the door in the closed position, the magnet 'sucks' the armature plate up by up to 5mm and traps the armature in the magnet face. Despite the small size of the FSH shear lock, it is capable of resisting up to 250kg of shear load. The shear lock accepts voltages from 12 to 24V DC.

Up to 250kgs holding force
Lock status mounting
Easy installation
2 year warranty
Low holding current
12 or 24VDC
