6.0mm 2 x 192/0.20 G/L Cable

Stock Code:
BCGL006-100
Price:
$0.00 excl GST

Description

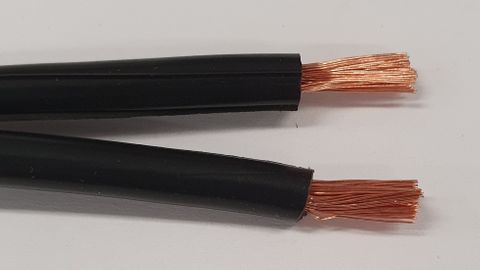

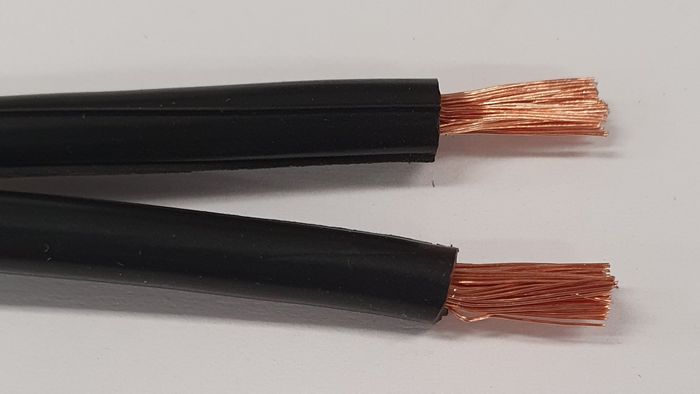

Figure.8 2 x 192/0.18 Cable


CONSTRUCTION : Parallel Webbed 192/0.18mm PVC sheathed wires.


Part Number ------------------------------ BCGL006-100
Conductors --------------------- 192 strands 0.2mm
Nominal Area ----------------------------- 6.0 square mm.
Insulation Thickness -------------------- 1.21mm (+/- 0.10mm)
Nominal O/D ------------------------------ 5 x 11.80mm (+/- 0.20mm)
Copper Conductor Sheath ------------- Flame Retardant UV StabilisedV80 PVC.
Colours ----------------------- Black
Construction ------------------------------ Overall sheath MUST not stick to
Conductors.


100m to be packed 2 by 100m drums per cardboard Box .


Note: Not Suitable For Connection To Mains Power Supply.
