4 Way H/Quality HDMI Splitter

Stock Code:
HDMISPL04HQ
Price:
$168.00 excl GST

Description

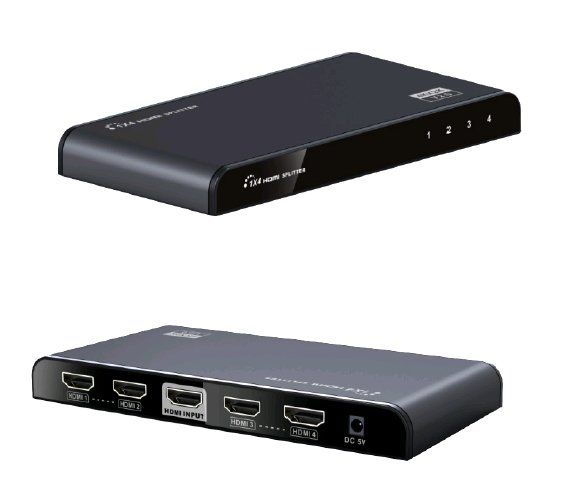

Radum 4K 1 in 4 out HDMI Splitter. Ultra HD 4K
2K@60Hz. Bandwidth up to 18Gpbs. HDMI 2.0, HDCP 2.0
complient. HDMI 3D.

Features
• HDMI splitter function: Distribute 1 HDMI source to 4
identical HDMI displays
• Support Ultra HD 4KX2K@60Hz, not just
4Kx2k@24/25/30Hz
• 3D support: If both HDMI source and HDMI displays
support 3D, this splitter can detect the EDID
automatically and support 3D output
• Support audio format: Standard audio and DSD
(Direct Stream Digital) and HD (HBR) audio
• HDMI Version: Compatible with HDMI1.0, HDMI1.4,
HDMI2.0
• HDCP Version: Compatible with HDCP1.4, HDCP

Specifications

Input Ports 1 x HDMI
Output Ports 4 x HDMI
Power Indicator LED 1 x LED
Signal Indicator LED 2 x LED
HDMI Version Compatible with DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP Version Compatible with HDCP 1.4, HDCP 2.2
Frequency Range 25MHz ~ 600MHz
Video Form Support 12 bit full HD video, 3D video and
4K x 2K@30/60Hz Ultra HD Video
Input and Output DDC Signal 5V p-p (TTL)
Audio Support standard audio and DSD
(Direct Stream Digital) and HD(HBR) audio
HDMI Resolution 480i/480p/756i/756p/720p/1080i/1080p/4Kx2K@24/25/30/60Hz
Working Temperature 0°C ~ 60°C
Power Supply DC 5V/1A
Power Consumption <8W
Dimension (W x D x H) 158 x 80 x 17mm
Weight 196g
Warranty 2 Years
