Crankshaft & Camshaft Seal Remover & Ins

Stock Code:
RDM-VT01301
Price:
$90.91 excl GST

Description

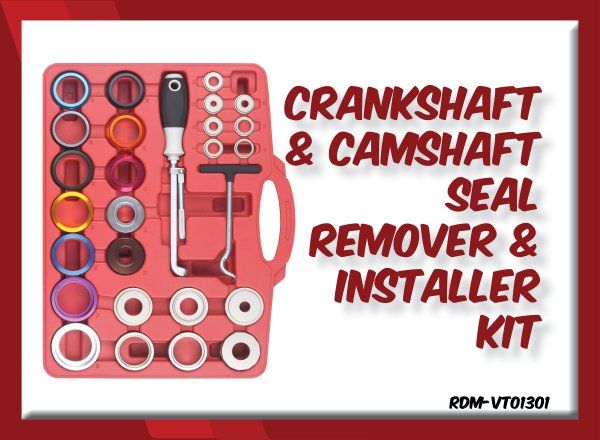

Crankshaft & Camshaft Seal Remover and Installer Kit

Quick and easy work for both removal and installation work.
Ideal for both crankshaft and camshaft seal.
Master kit includes wide size seal installers.
Provided with 2 seal removers with different length and angle fits wide applications.
Angled blade seal remover is ideal for removing seals in limited space.
Supplied in carry-case

Installation Description
1 : Seal attachments 28mm-68mm (diameter)
2 : Extension Caps
3 : Bolt attachments (M8, 10, 12, 14, 16, 18 & 20)
4 : Camshaft/crankshaft existing bolt

Parts included in kit:
A: Seal Remover
A1: Overall length: 285mm, Angled 110 degrees, Steal wing: Angled 360 degrees.
A2: Overall length: 165mm.

B: Bolt Attachments
B1: ID (inner diameter): 8mm
B2: ID: 10mm
B3: ID: 12mm
B4: ID: 14mm
B5: ID: 16mm
B6: ID: 18mm
B7: ID: 20mm

C: Extension Caps
C1: Adjustable cap, Min. application length: 33mm Max. application length: 50mm
C2: Concaved 54.5x24.5mm (diameter)
C3: Raised 54.5x14.5mm (diameter)
C4: Raised 54.5x24.5mm (diameter)
C5: 54.5x46x40.5mm Thickness: 15mm
C6: 54.5x46x40.5mm Thickness: 23mm

D: Seal Attachment
D1: 68mm (Silver)
D2: 64mm (Purple)
D3: 60mm (Sea Blue)
D4: 58mm (Golden)
D5: 56mm (Grass Green)
D6: 52mm (Dark Grey)
D7: 49mm (Turquoise)
D8: 48mm (Black)
D9: 46mm (Orange)
D10: 42mm (Red)
D11: 34mm (Light Grey)
D12: 28mm (Brown)

WEIGHT: 3.6kg
SIZE: 45x38x10 cm


PICTURED Items may vary...
